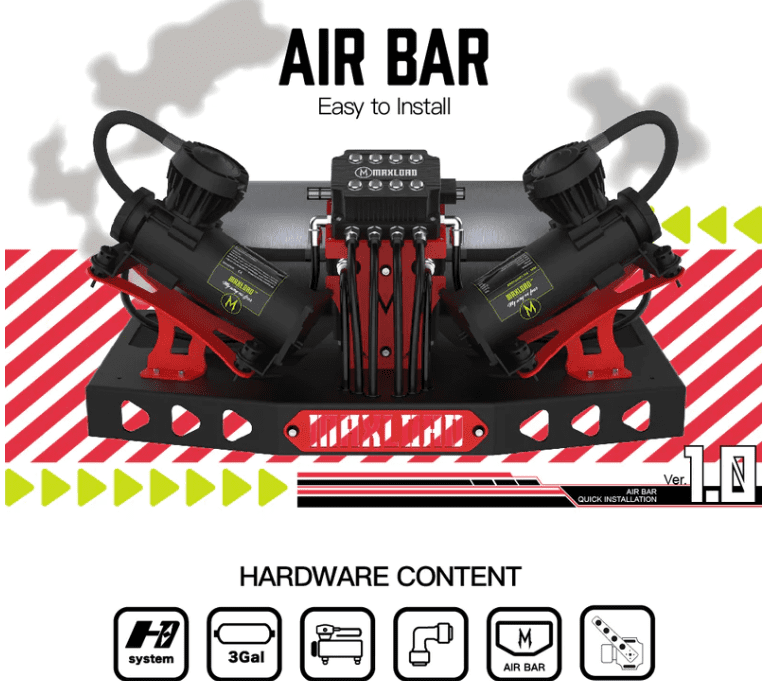

AIR BAR H1 is an air suspension control system package which contains all necessary components. Every single part is installed and tested accurately except 4 height sensors which must be installed on the chassis. There’s no need of long waiting time and hard work, just put it in the car, install 4 height sensors and connect 4 wires and 4 air lines then enjoy “Drive On Air”.

SPECIFICATION

Size：680mm x 400mm x 350mm
Weight: 23Kg

HARDWARE CONTENT

H1 Management System X1
Air Bar Bracket X1
V680 Compressor X2
3 Gal Air Tank X1
Automatic WaterTrap X2
Safety Valve X1
Check Valve X2
Dedicated Harness X1
High-quality Fittings X1

INSTALLATION GUIDE
Find a proper space to place AIR BAR H1, keep it away from dust and heat source. Install AIR BAR H1 on your car with steel brackets provided in the parts box. Make sure AIR BAR H1 is fixed in case of accidental movement while driving.
Install 4 height sensors under H1 installation.
Connect 2 “BATTERY +” lines to battery +. Connect “ACC+” to any accessary fuse in parallel. Connect “GND” to bare metal of car body with no paint, rust or other things between them in case of damaging the system.
Connect 4 air lines from air bags to corresponding push-in fittings on the bracket without any leaks.
Enjoy “Drive on air”.
